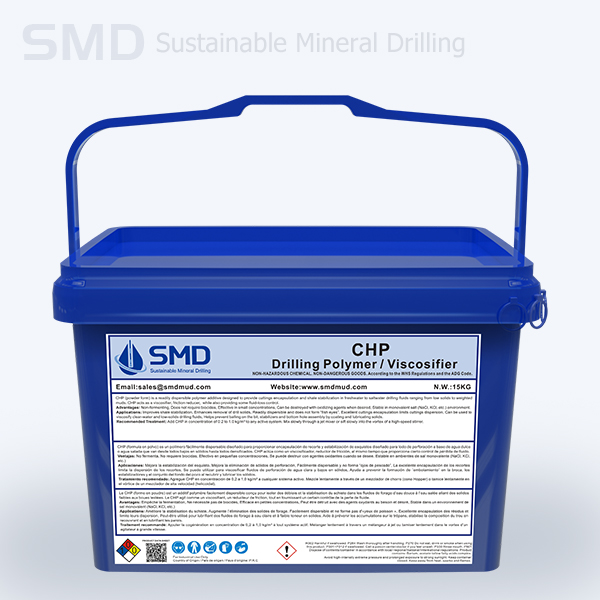

Drilling Powder Polymer CHP

in stock

SMD Drilling Powder Polymer CHP forms a protective polymer film on the drill pipe and bit as well as on the walls of the borehole which helps to provide lubrication when drilling in troublesome formations. It is ideally suited for use in horizontal directional drilling, water well, mining, and tunneling applications.

INQUIRY

Product Description

Drilling Powder Polymer CHP (powder form) is a readily dispersible polymer additive designed to provide shale stabilization in freshwater to saltwater drilling fluids ranging from low solids muds. CHP acts as a viscosifier, and friction reducer, while also providing some fluid-loss control. Drilling Powder Polymer CHP forms a protective polymer film on the drill pipe and bit as well as on the walls of the borehole which helps to provide lubrication when drilling in troublesome formations. It is ideally suited for use in horizontal directional drilling, water well, mining, and tunneling applications.

The function of SMD Drilling polymer CHP

Super high viscosity
Easily mix, improve lubricity
Prevent the swelling and dispersion of shale and clay
Increase the core recovery rate
Enhance removal of drill solids
Can be used to viscosity clear-water and low-solid drilling fluids
Dosage:02 to 1.0 kg/m³
Package:15kg/drum

Application

SMD Drilling polymer CHP provides cuttings encapsulation and improved wellbore stability in a variety of drilling fluids. It can be used as a single product, low solids mud system, or it can be combined with SMD Bentonite CX GEL or SMD Viscosifiers CX TROL to form a more robust mud system.

It is ideally suited for use in horizontal directional drilling, water well, mining, and tunneling applications.

Advantages of SMD Drilling polymer CHP

Readily dispersible and does not form “fish eyes”
Excellent cuttings encapsulation limits cuttings dispersion
Improves shale stabilization
Help prevent balling on the bit, stabilizers, and bottom hole assembly by coating and lubricating solids
Enhances removal of drill solids
Can be used to viscosity clear-water and low-solids drilling fluids

Technical Data:

Appearance: White Powder

Solubility: Soluble in water

PH: 6.0-8.0

Recommended Treatment:

Add SMD Powder Drilling Polymer CHP in the concentration of 0.2 to 1.0 kg/m³ to any active system. Mix slowly through a jet mixer or sift slowly into the vortex of a high-speed stirrer.

Experimental description:
Powder drilling fluids chemicals CHP can reinforce and maintain borehourse prevent clay swelling, and dispersion increase core recovery rate enchace removal of drill solids.
