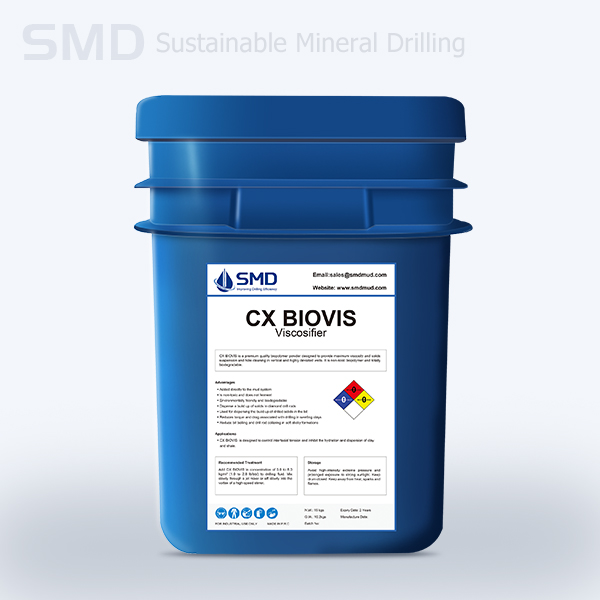

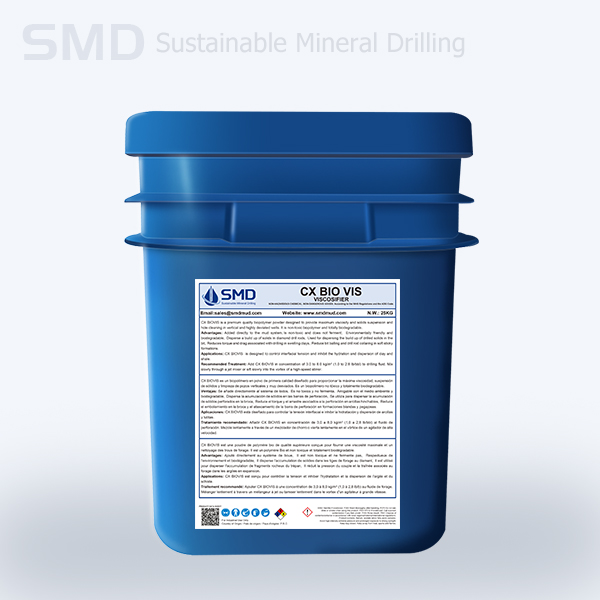

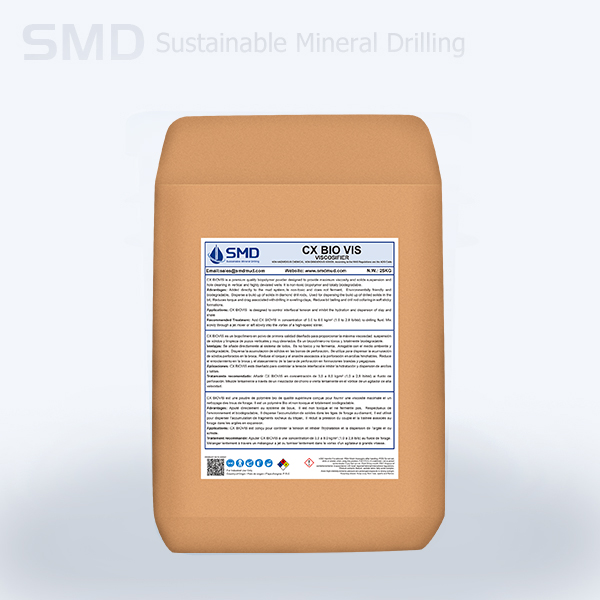

Drilling Powder Viscosifier CX BIOVIS

Product Description

SMD Drilling Powder Viscosifier BIO VIS is a premium quality biopolymer powder designed to provide maximum solids suspension and hole cleaning in vertical and highly deviated wells as well as horizontal directional drilling applications.
Drilling Polymer CX BIO VIS is a distinctive product and able to produce a thixotropic shear thinning fluid. BIO VIS also acts as a very effective mud filtrate viscosifier.

Advantages:

Helps disperses easily in fresh water mud, and brines
Provides thixotropic properties and non-Newtonian flow characteristics
over a wide salinity range at low concentrations
Provides excellent suspension without the need for clays
Minimizes the potential for formation damage

Recommended Treatment:

Add BIO VIS Sin concentration of 1.0 to 3.0 kg/m³ (0.4 to 1.1 lb/bbl) to drilling fluid. Mix slowly through a jet mixer or sift slowly into the vortex of a high-speed stirrer.

Applications

Viscosify fresh water and brine-based fluids used for drilling, milling,under-reaming, and gravel packing operations.
Suspend bridging agents and weighting materials in fresh water andbrine systems.

Category	SMD	AMC	MUD LOGIC	MATEX	CETCO	BAROID	MI SWACO	MUDEX
Bentonite	CX BEN	Aus-Ben	GEL 100		PREMIUM GEL	AQUA GEL	MI GEL
	CX GEL	AUS GEL AMC BENTONITE HV	GEL AUS 4		SUPER GEL-X	QUIK GEL Bore-Gel Quik-bore	GEL SUPERME
	SUPER GEL	AUS GEL XTRA	GEL EXTRA		HYDRAUL EZ	QUIK GEL GOLD	MAX GEL Maxbore HDD	GEL X 80 GEL X ULTRA
Drilling Polymers	SUPER POLY	LIQUI POL/liquid poly EZEE MIX SDFC	LIQUI MUD	DD 955 Liquid	INSTA-VIS PLUS	EZ MUD	POLY PLUS	POLY VIS LIQUID
	POLY PLUS	CAP 21 LP 2000/FS 2000	2000 PLUS	ULTRAVIS		EZ MUD PLUS	POLY PLUS 2000	POLY VIS 2000
	CHP/CHP PLUS	CR 650	C.R.P	DD 2000	INSTA-VIS DRY	EZMUD GOLD	POLY PLUS RD	CLAY SLAYER POLY VIS HV
	Sand Cure	Sand Fix		SAND DRILL				POLY VIS LV
	Clay Fix	Clay Doctor
	Core Fix	Core Well	Coreseal					CLAY FIX
	CX BIO VIS	BIO VIS AMC GUAR GUM	BIO-GUM
	POLYXCD	XAN BORE	XAN-VIS		SUSPENT IT	NO SAG/BARAZAN	DUOVIS	XAN VIS
	VIS	EZEE PAC R	PAC R ULTRA				PLATINUM PAC	ENVIRO VIS VIS PAC R VIS TROL
	CX TROL	AUS TROL EZEE TROL	TROL		REL-PAC	QUICK-TROL		VIS TROL RD
	FIL	EZEE PAC L	PAC L ULTRA		REL-PAC XTRA-LOW	QUICK-TROL LV	PLATINUM PAC UL	VIS PAC L
	SMD 206	AMC 206
Shale Inhibitors	KLASTAB	KLATROL	SHEAR TROL				KLAGARD
	PSH	SHALEHIB ULTRA	SWELL HIB				ULTRAHIB
	KLACAP	MAXI CAP					ULTRACAP
	SAS	AUS-TEX RESIDRILL	INVADE STOP				ASPHASOL/ SURPREME
Foaming Agents	FOAM PLUS	SUPER FOAM AEROFOAM AMC HV FOAM AMC ROTAFOAM CONC	FOAM ULTRA	Matex DRILL FOAMS FOAMER ES 1560 XS	VERSAFOAM PLUS	QUICK FOAM BARAFOAM	PLATINUM FOAM SUPER FOAM	FOAM X PLUS
LCM	Plug	AUS PLUG	L/C STOP	MATEX DD XPAND	MACRO-FIL	MACRO-FIL	POLYSWELL	X PLUG
	CX PELLETS	Bentonite Pellets AMC BENTONITE PLUG	Coated TABLETS			Bentonite Pellets	Bentonite Pellets
	FT	STICK UP				FUSE-IT
	SEAL	MAGMA FIBRE	MAGMA FIBRE			N-SEAL		SEAL X
Lubricants	DRILL LUBE	EP BIT LUBE AMC EZYCORE	PRESSURE LUBE	TORQUELESS	DRILL-X	BARO LUBE	MI LUBE	CORE X DD 5000 X TORQUE
	SUPER LUBE	UNIVERSIAL AMC SUPERLUBE	MAXI LUBE				EP LUBE
	CX CUT	AMC CUT AMC EZEE CUT
	TORQUE CUT	TORQUE GUARD AMC WONDERCUT	TORQUE DOWN
	PENE OIL	PENETROL-XTRA	PENETRATION OIL					PENETREX
Grease& Oils	Thread grease	Thread grease DRTG AMC THREAD GREASE	THREAD GREASE	ES THREAD COMPOUND
	COOPER THREAD GREASE	AMC COPPER COMPOUND
	TG-50	ZN-50	ZN-50
	Rod grease	Rod Grease Xtra Tacky AMC GORILLA GRIP	DD GREASE - ULTRA TACKY					BIO TACK XT ROD GREASE
	TUBE-LUBE	TUBE LUBE AMC SUN SOAP	SLICK&SLIDE
	CX LRG	AMC LIQUID ROD GREASE	LRG
Thiner	CX WELLCLEAN	WELLCLEAN	MUD FREE
	THN	Liqui - Sperse	LIQUID SPERSE	DD 650 L CLAY BREAK	SUPER THIN	AQUA-CLEAR PFD	RINGFREE	CLAY BREAKER
Detergent	CX DET	AMC-DET AUS-DET XTRA AMC BORDET	DRILL DET ULTRA	DUST-LESS	DRILL-TERGE	CON DET	PLATINUM D-D	BORE CLEANSER X DET 202
Specialty Products	WF-1	WATER CONDITIONER	WATER SOFTENER
	POTASSIUM CHLORIDE (KCl)	POTASSIUM CHLORIDE (KCl)
	CALCIUM CHLORIDE	CALCIUM CHLORIDE
	SODA ASH	SODA ASH	SODA ASH
Hammer Oil	Hammer Oil 320	Hammer Oil 320	Hammer Oil 320	RDO 302 ES				BIO HAMMER OIL
	Hammer Oil 320 M	Hammer Oil 320 M	Hammer Oil 320 M
Cementious Products	GYPSUM	GYPSET	COLLAR SET
	PLUG A	AUS GRIP A AMC ECO GRIP A	RIGID FOAM Part A
	PLUG B	AUS GRIP B AMC ECO GRIP B	RIGID FOAM Part B
