Product Description
Decanter-Centrifuge-Unit-Flyer
Benefits & Features
Significantly reduces overall drilling rig water consumption reduces drilling fluid costs reduces environmental impact of drilling returns simple, easy to operate & maintain hydraulic small footprint modules provide cleaner & safer drilling site.
Specifications

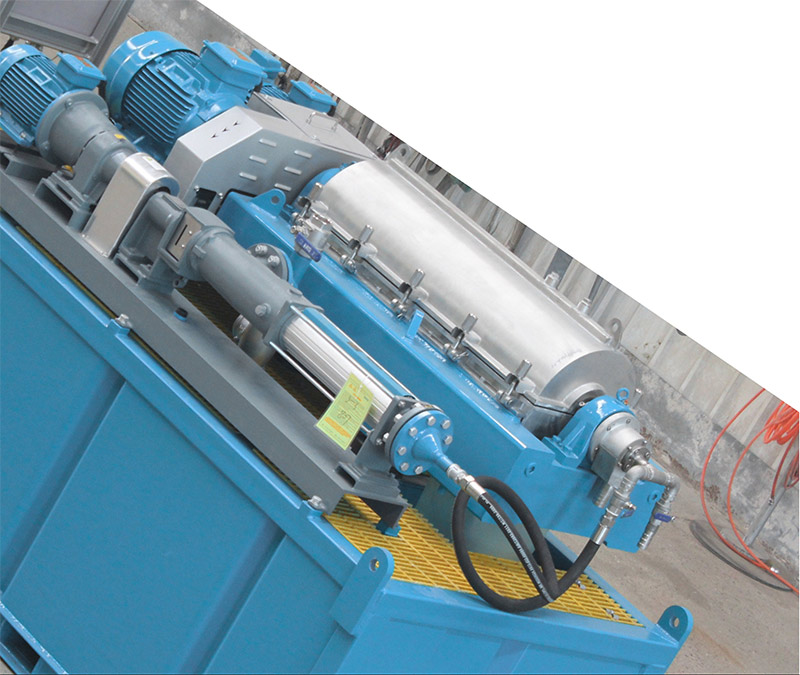

Centrifuge
Bowl diameter -9”
Bowl length – 35”
Max flow capacity -40 GPM
Max bowl speed – 4400 RPM
Separation point – 2-5 micron
Drive – Electric motor / Hydraulic drive
Stand – Steel construction w/adjustable height legs
Specially designed for small capacity, small footprint, fine solids separation, easy mobilization and in modules
Bowl material made from duplex duplex stainless steel by centrifugal casting.
Screw protection with Tungsten Carbide Tile
Bowl solids discharge port protected by Tungsten Carbide
Insert, solid blocking ring avoid solids building up.
Easily adjustable liquid discharge weir height
Genuine NSK/FAG bearing.
SYSTEM OPTIONS:
Model | GFH150 | GE150 | GSR150 |
---|---|---|---|
Capacity | 150 lpm | 150 lpm | 150 lpm |
Weight | 1300kg | 1100kg | 2500kg |
Decanter w/tank | LW 220 | LW220 | LW220*880 |
Feeding Pump | Optional Hydraulic drive | Optional Screw pump/submersible pump | Screw pump included |
Control Panel | Hydraulic | Electric | Electric |
