Product Description

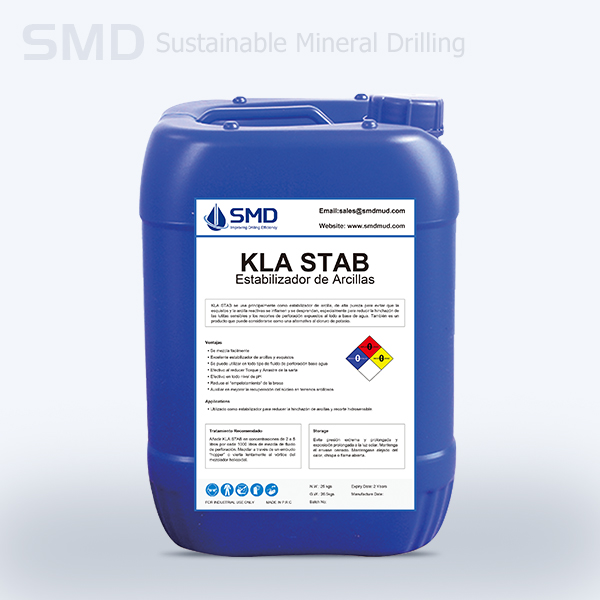

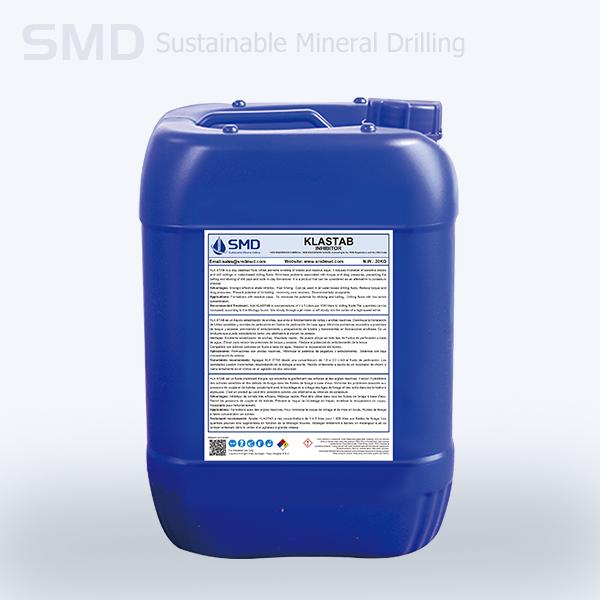

Shale Inhibitor KLA STAB shale inhibitor is used primarily as a borehole stabilizer to prevent reactive shale and clay from swelling and sloughing, especially for reducing the swelling of sensitive shales and drill cutting exposed to water based mud and stabilizing water sensitive formations such as shale, mudstones, talcs, kimberlites and typical shear zones.
Application
- Can be used in diamond and rotary drilling, especially for no effect of potassium chloride
- Strong effective in the polymer drilling system
- Can be well suited to low-solids, non-dispersed drilling mud systems
- Control the dispersive tendency of mudstones and shales
- Designed to work with PAC for a low viscosity drilling fluid that provides hole stability in shear zones
- Can be used with super saline or water with extreme hardness
Advantages
- Strongly effective shale inhibitor
- Suitable for all pH level
- Environmentally acceptable
- Stable at temperatures more than 204 ℃ (400℉)
- Prevent potential of bit balling
- Reduced the amount of dilution required and associated treatment cost
- Unaffected by contaminants such as hard water cement or CO2
Recommended Treatment
Add KLA STAB in concentrations of 11 to 23 liters per 1000 liters to drilling fluids. Mix slowly through a jet mixer or sift slowly into the vortex of a high-speed stirrer.
Technical Data
Appearance Clear, blue liquid
pH 6.5 – 8.5
Specific gravity 1.1
Solubility in water 100%
